CK6140B CNC Lathe - Compact Precision for Versatile Machining

Main Technical Parameters	CK6140B
Machine Model	CK6140B
Maximum Swing Diameter over Bed	φ400mm
Maximum Swing Diameter over Slide	φ210mm
X-axis (Transverse) Maximum Stroke	210mm
Machining Length (Distance Between Centers)	-
Spindle Nose Model	-
Spindle Bore	φ58mm
Spindle Inner Hole Taper	T60
Spindle Speed	60-300 rpm
	250-800 rpm
	600-2000rpm
Bed Guide Width	-
Guideway Type	-
Bed Feet	-
Spindle Motor Power	-
Turret	-
Chuck	-
Tailstock Sleeve Diameter	-
Tailstock Sleeve Taper	-
Repeat Positioning Accuracy	-
Roundness	-
Working Accuracy	-
Flatness	-

The CK6140B CNC Lathe is a compact, high-precision turning solution designed for versatility in small to medium-sized part manufacturing. Balancing agility with reliable performance, this lathe is ideal for industries such as electronics, automotive components, and general engineering, where precision and adaptability are key.
Featuring a maximum swing diameter over the bed of φ400mm and over the slide of φ210mm, the CK6140B handles a range of workpiece sizes while maintaining a space-efficient footprint. Its X-axis maximum stroke of 210mm ensures flexibility for intricate turning operations, making it suitable for both simple and complex components.
At its core, the lathe is equipped with a φ58mm spindle bore and T60 inner hole taper, supporting compatibility with various tooling and workholding setups. The spindle speed offers three optimized ranges—60-300 rpm (low), 250-800 rpm (medium), and 600-2000 rpm (high)—enabling precise control over cutting conditions for materials like steel, brass, and plastics.
While specific structural details (e.g., bed guide width, turret configuration) are not listed, the CK6140B’s design prioritizes user-friendly operation and consistent performance. Its compact size makes it suitable for workshops with limited space, without compromising on machining capabilities.
Whether producing small-batch prototypes or high-volume parts, the CK6140B CNC Lathe delivers the precision and versatility needed to meet diverse manufacturing demands, solidifying its role as a valuable asset in modern production environments.

Product Tags:

compact CNC lathe machine



versatile CNC horizontal lathe



precision CNC lathe with warranty

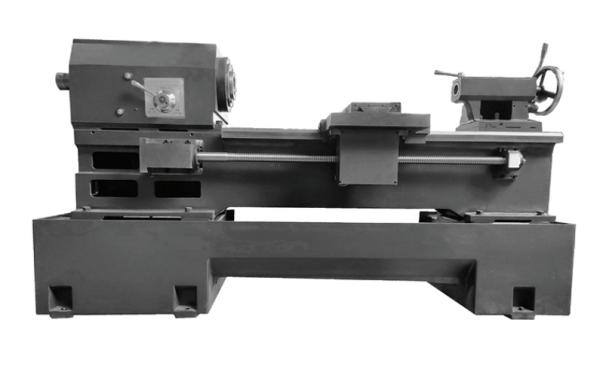

CK6140B CNC Lathe - Compact Precision for Versatile Machining Images
